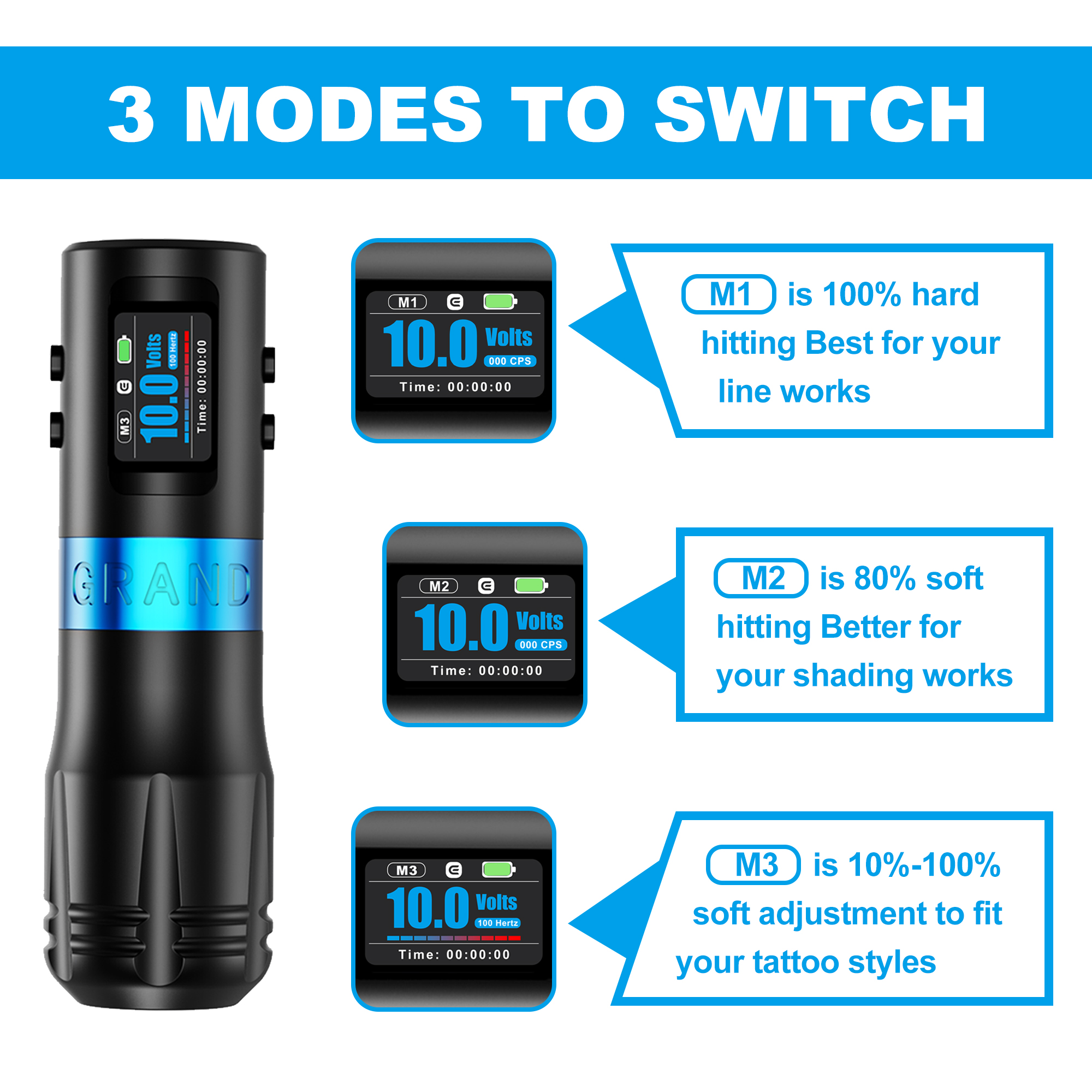

●MODE CHANGE:
M1 mode:100% hard, for liner and hard area of skin
M2 mode: 85% soft, for shader and soft area of skin
M3 mode: 10%-100% soft, named E-soft which can adjust power of soft.

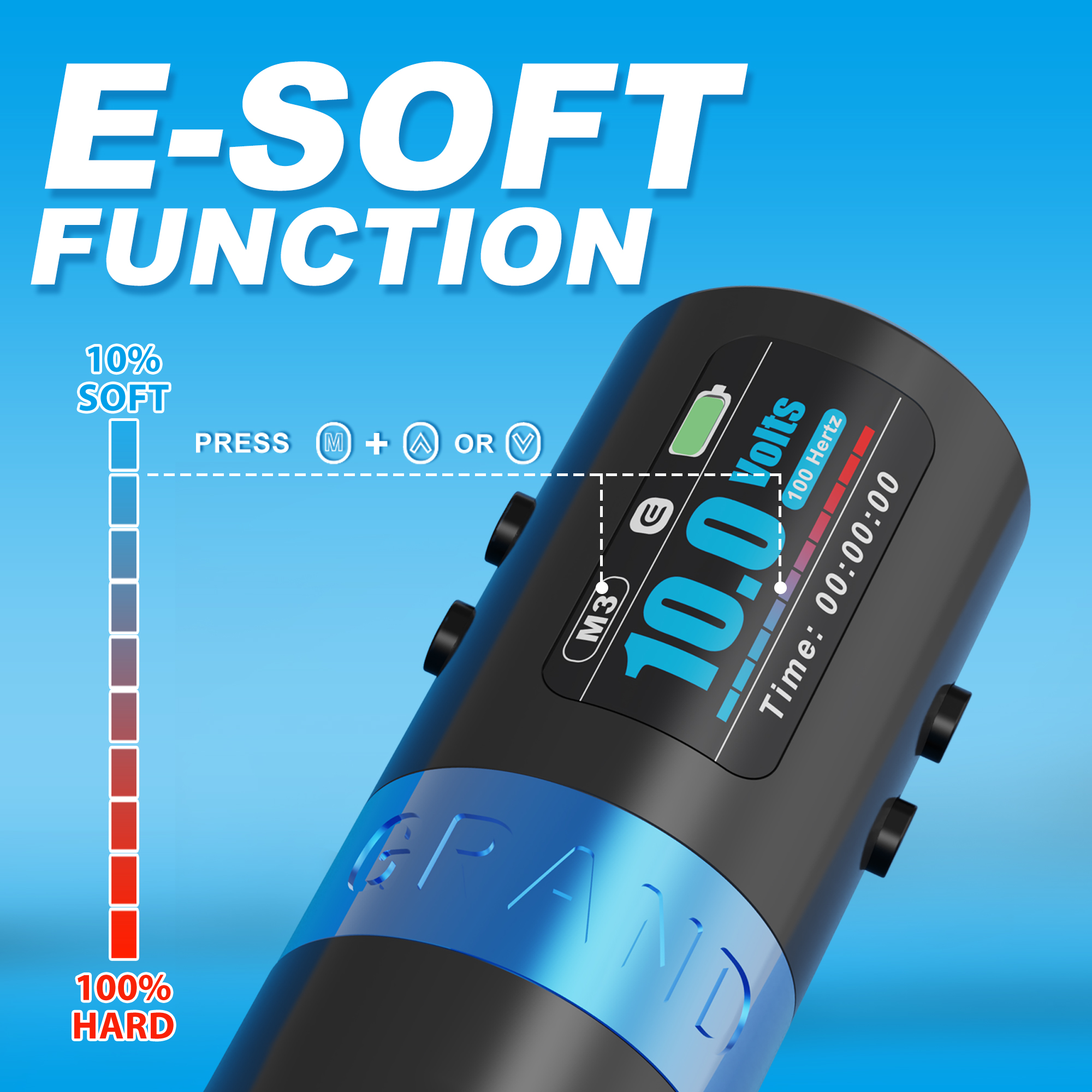

●E-soft: 1bar=10%soft, 10 bars=100%hard
10 adjustable modes artists can find their soft modes in tattooing

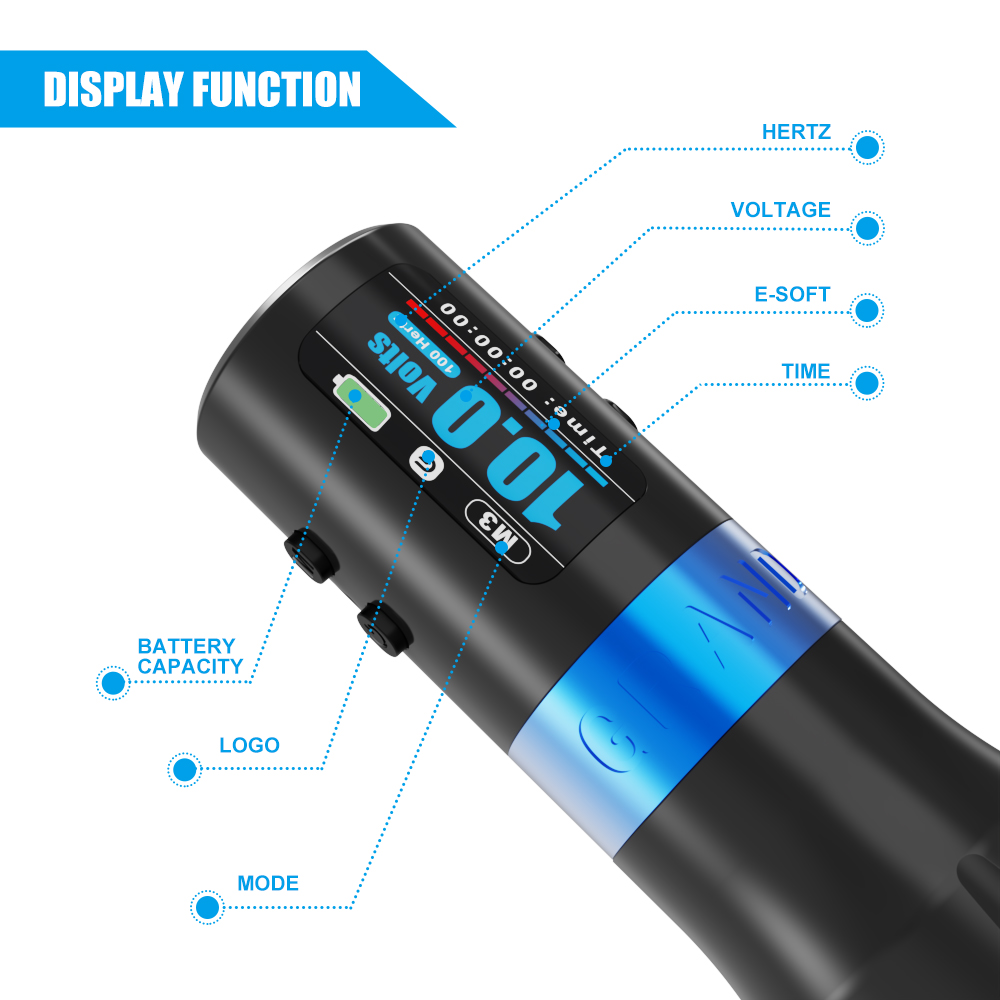

●JUMP STAR
The logo is blue, function is fully enabled throughout the process
The logo is white, Intelligent activation based on actual situation
●HERTZ/CPS(MOTOR SPEED)
10-100hertz In M3 mode, 44-177cps In M1/M2 mode

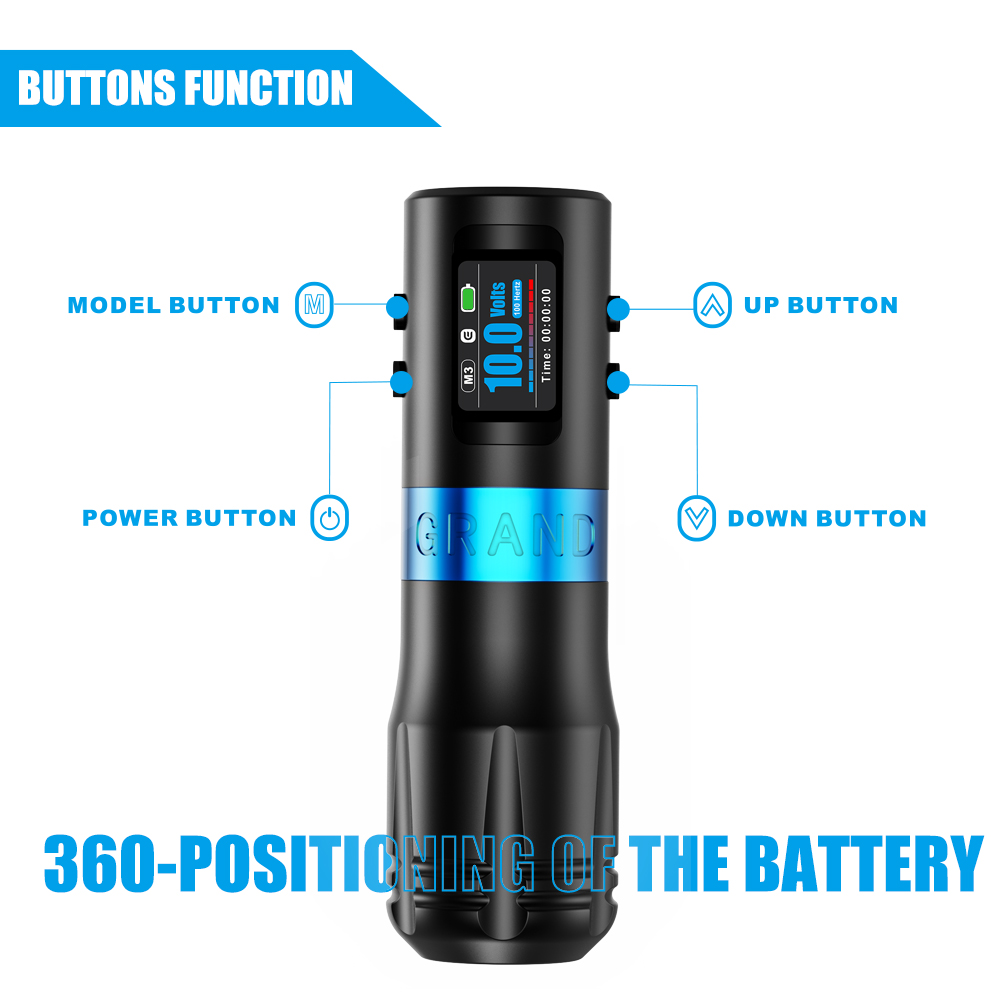

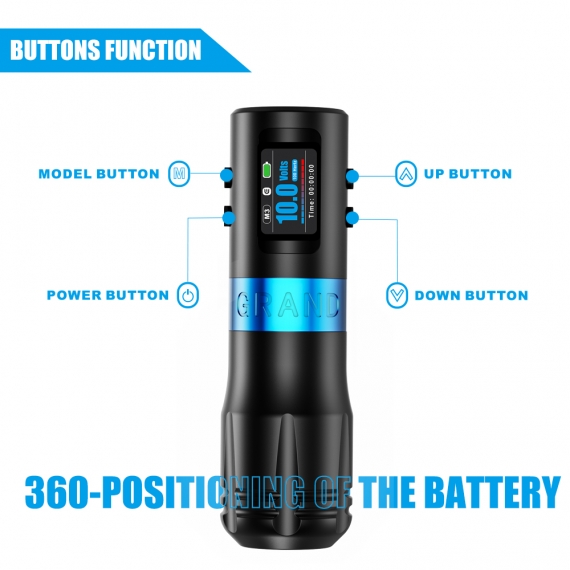

●MODEL BUTTON

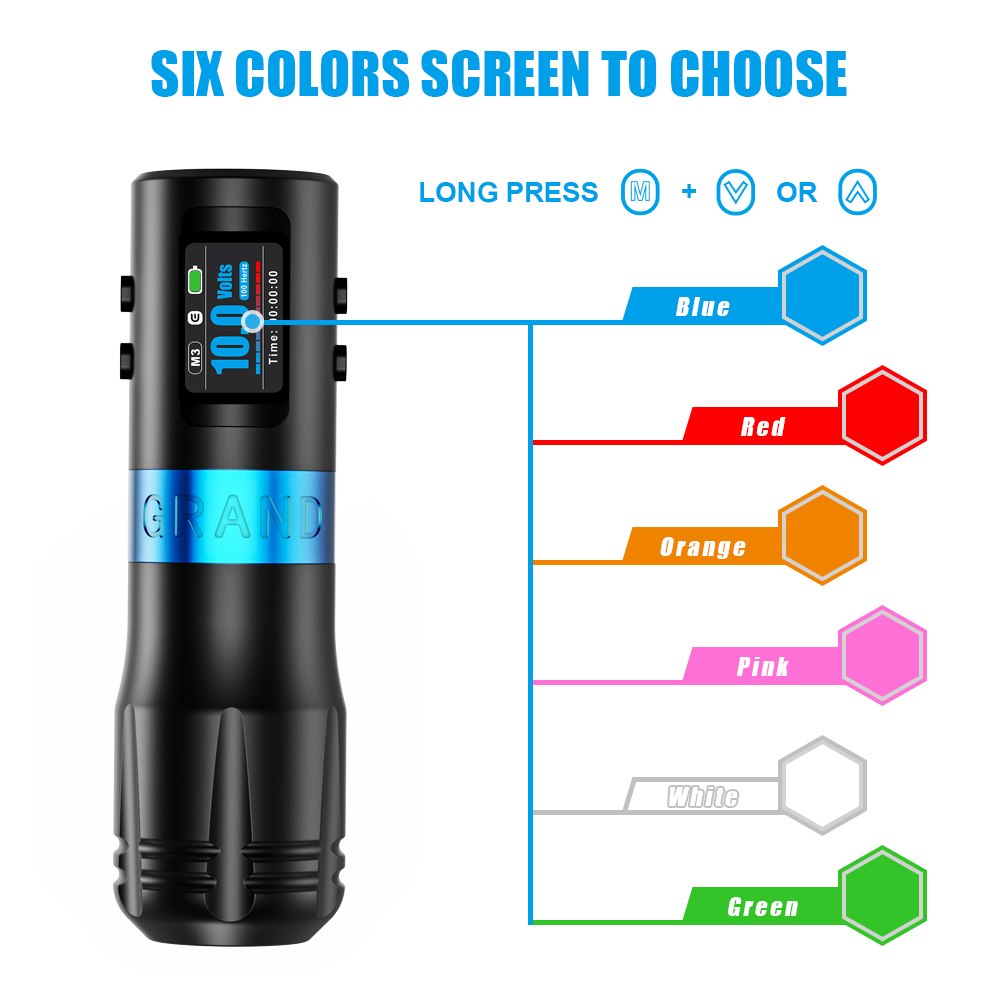

Long press to change the font color
Single click to adjust power of soft model
Double clicks to change screen position(Left or right)
●POWER BUTTON
Function one,Pressing 3 seconds to Power on/off.
Function two, Pressing again to work start/pause
Double clicks to change model(M1-Hard | M2-Soft | M3-E-Soft)

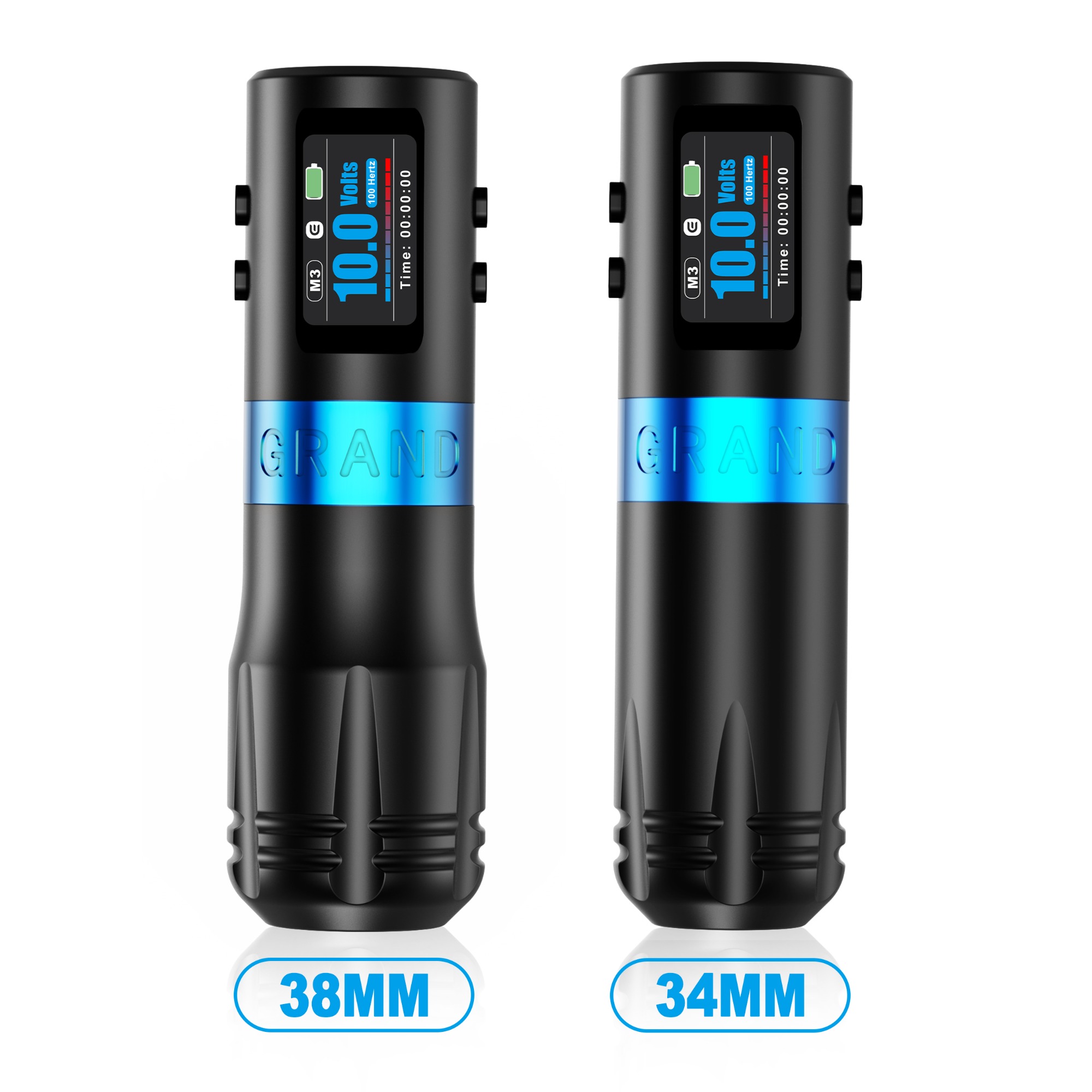

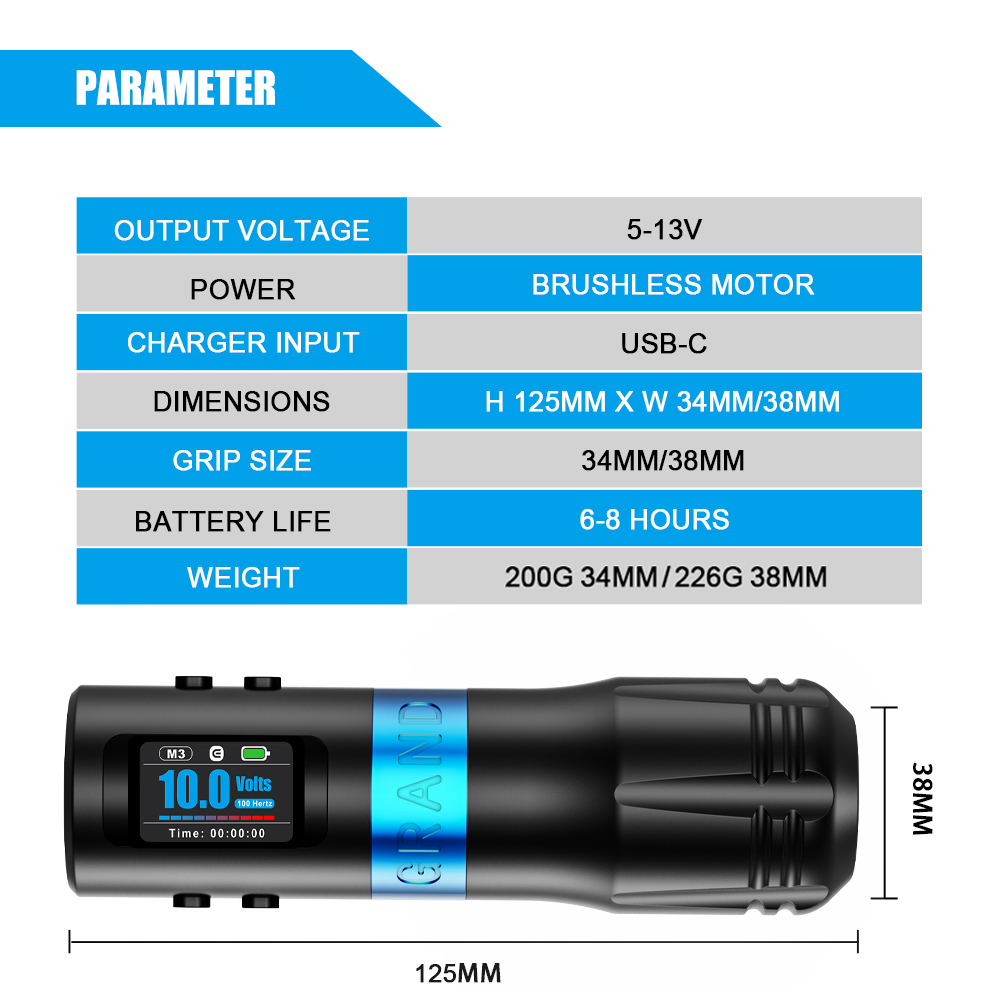

★Weight: 200g with 34mm grip / 226g with 38mm grip

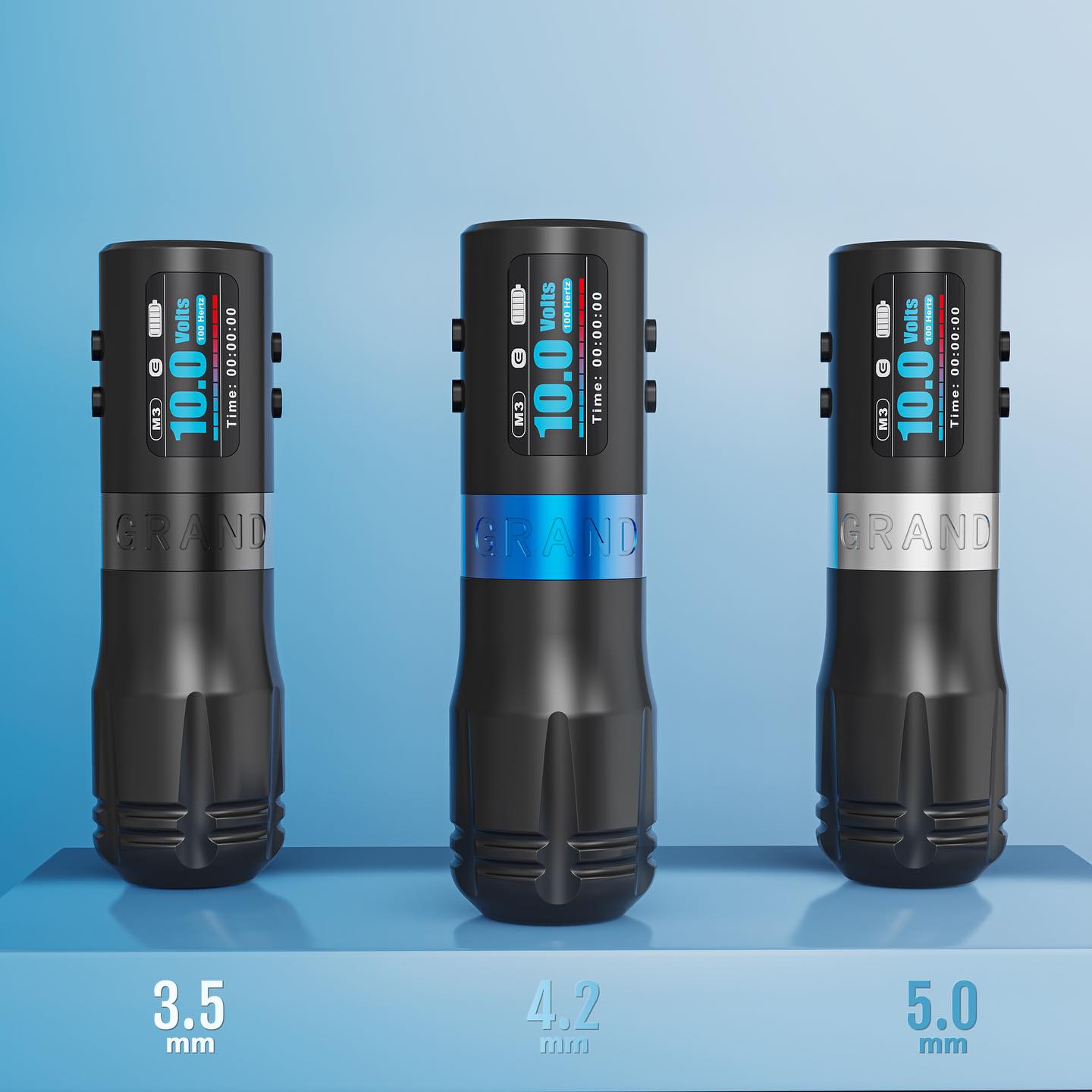

★Stroke: 3.5mm|4.2mm|5.0mm|
★Battery Type: 5 bars=100%,4 bars=80%, 3 bars=0%, 2 bars=40%, 1 bars=20%

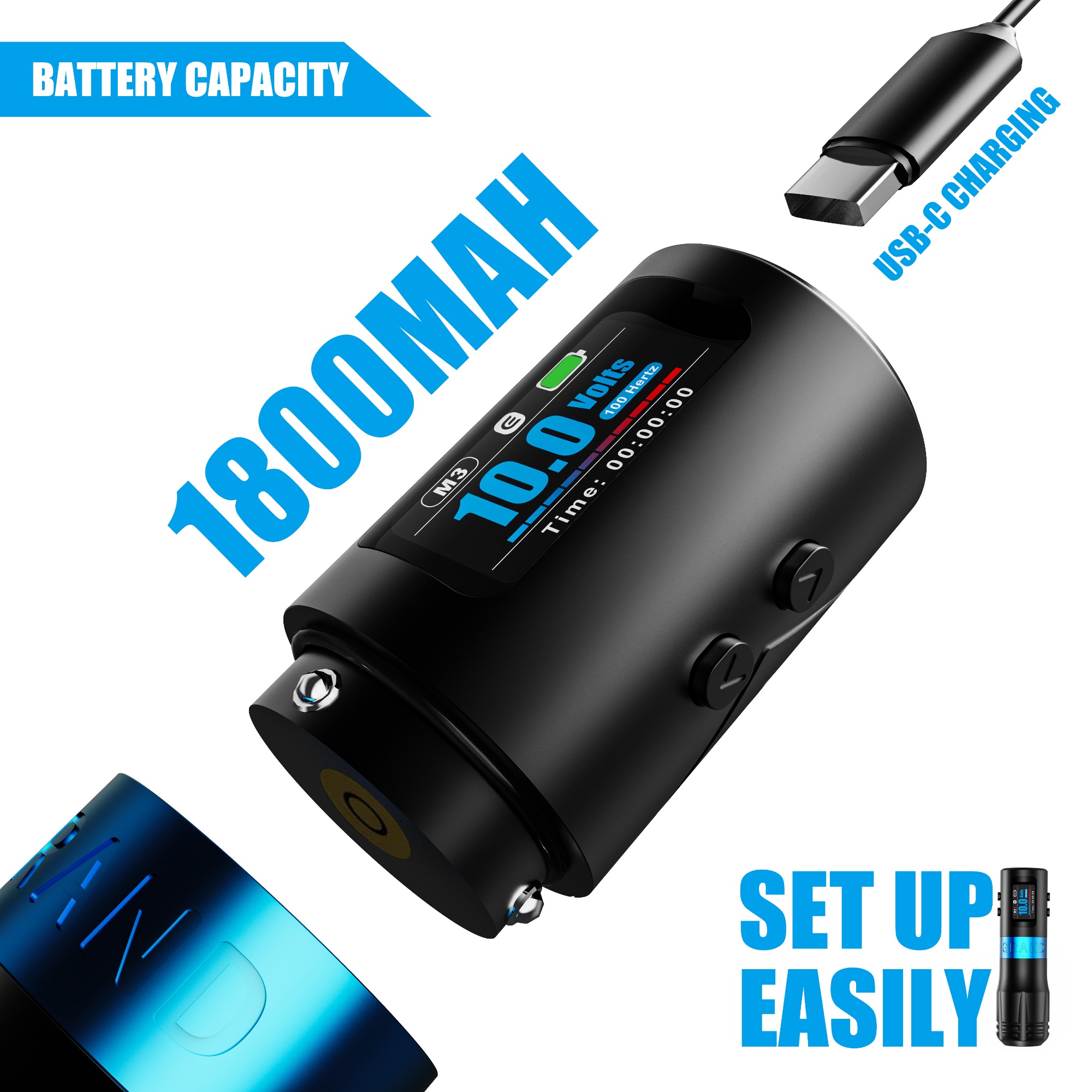

★Battery Capacity: 1800mAh
★Charger Input: USB-C 2A
★Charging time: 1.5-2h (100%, 2Amp 5Volt Adaptor)
★Working time: 6-8 hours (Full Charge)
★Output Voltage: 5-13V
★Jump Start Voltage: 10V, 0.2 Seconds
★Increment/Decrement Voltage Interval: 0.1V
★Size: H 125mm X W 34mm( Heavy grip: W 38mm)

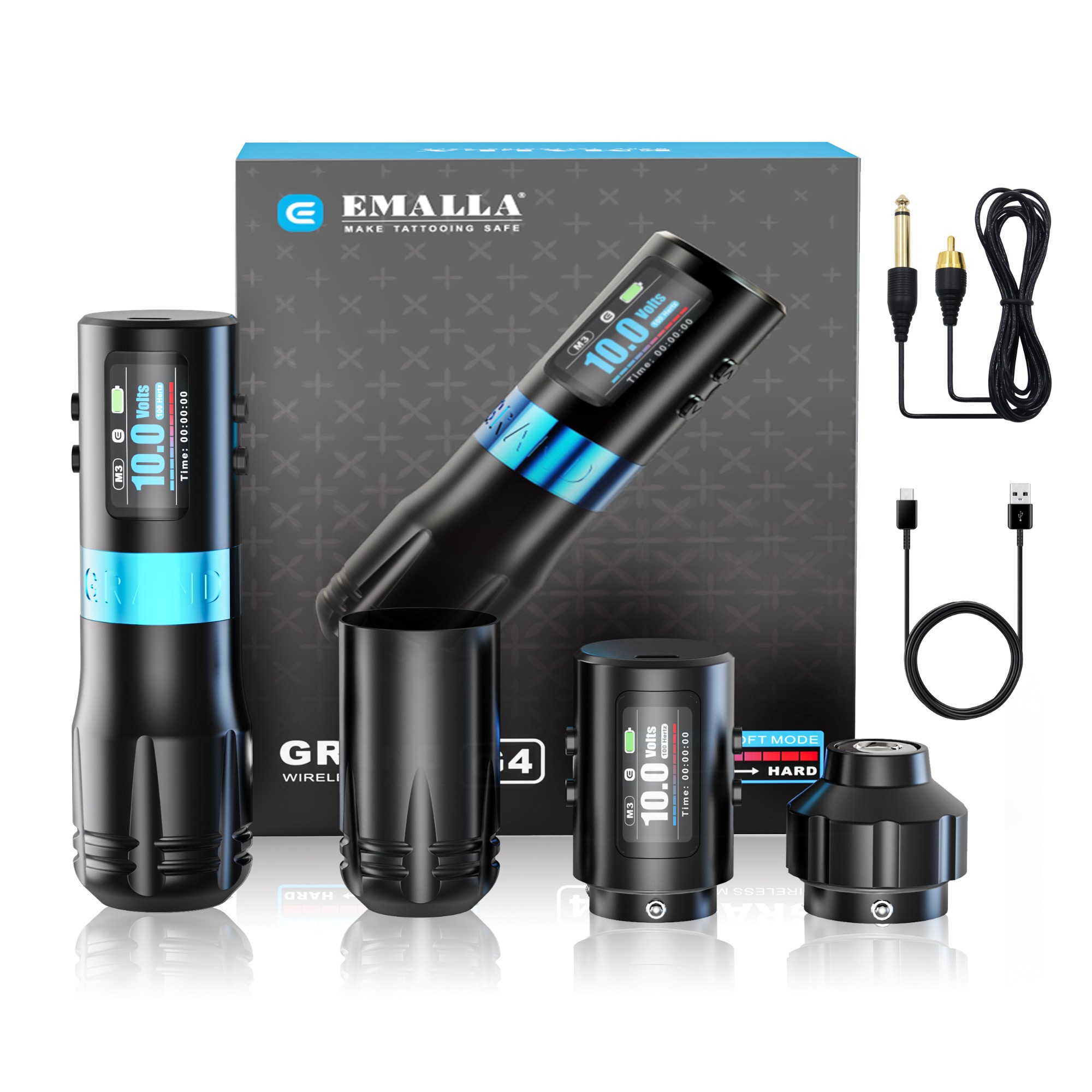

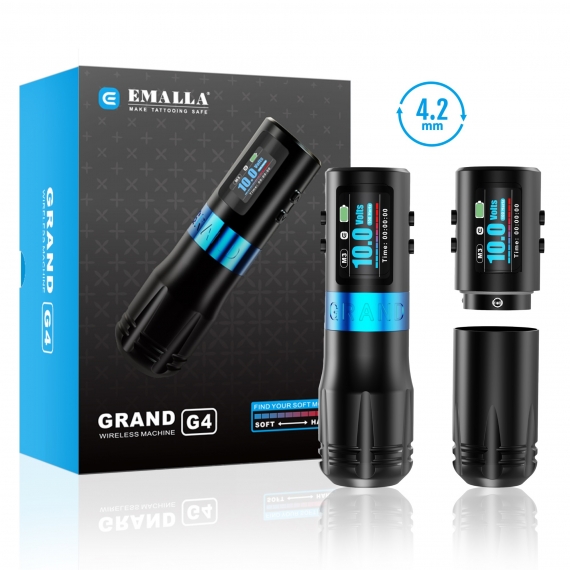

★Package 1 Includes:
1×pen machine
2×1800mA battery pack
1x 34mm grip/ 38mm grip
1×USB-C +RCA charging cable
1×RCA Plug
